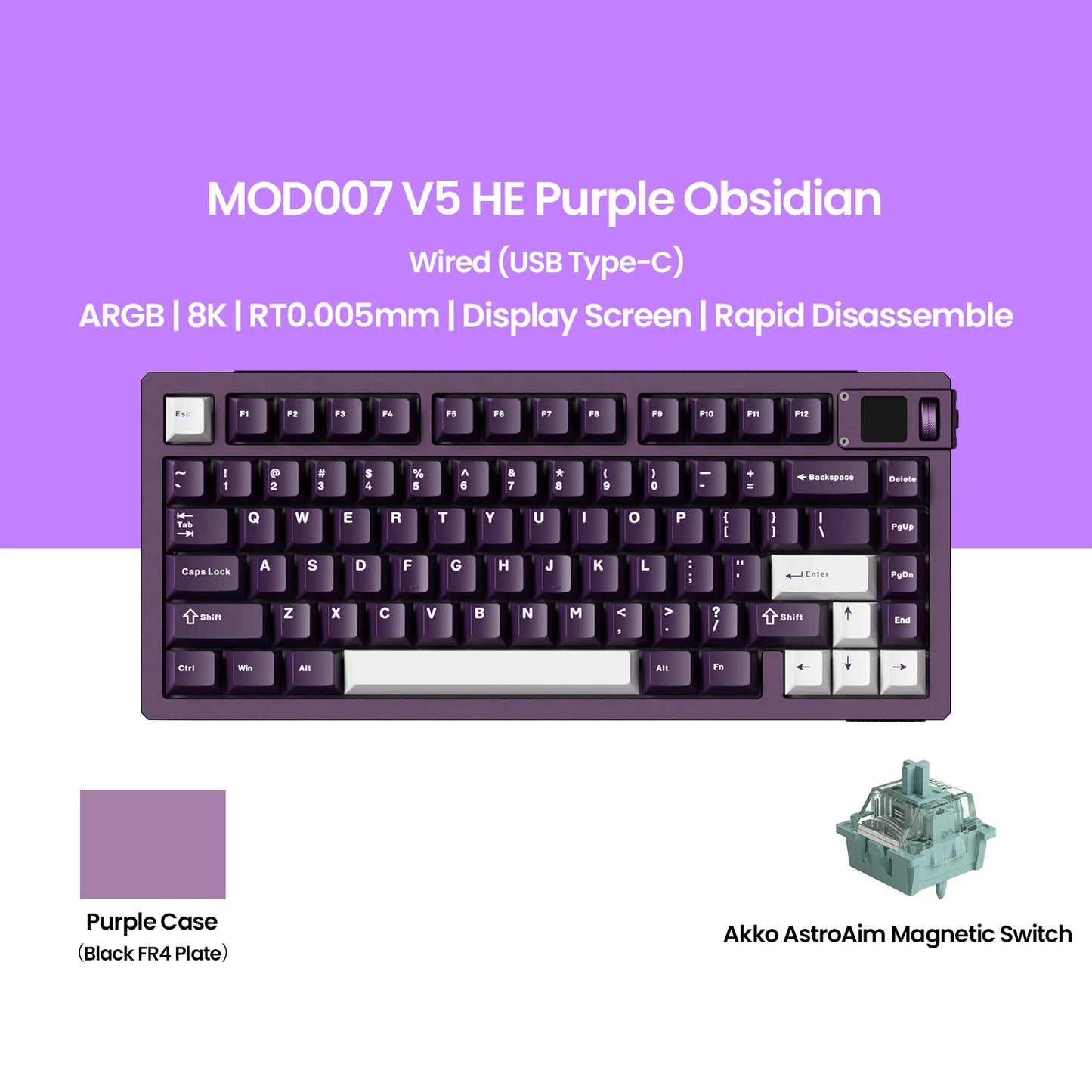

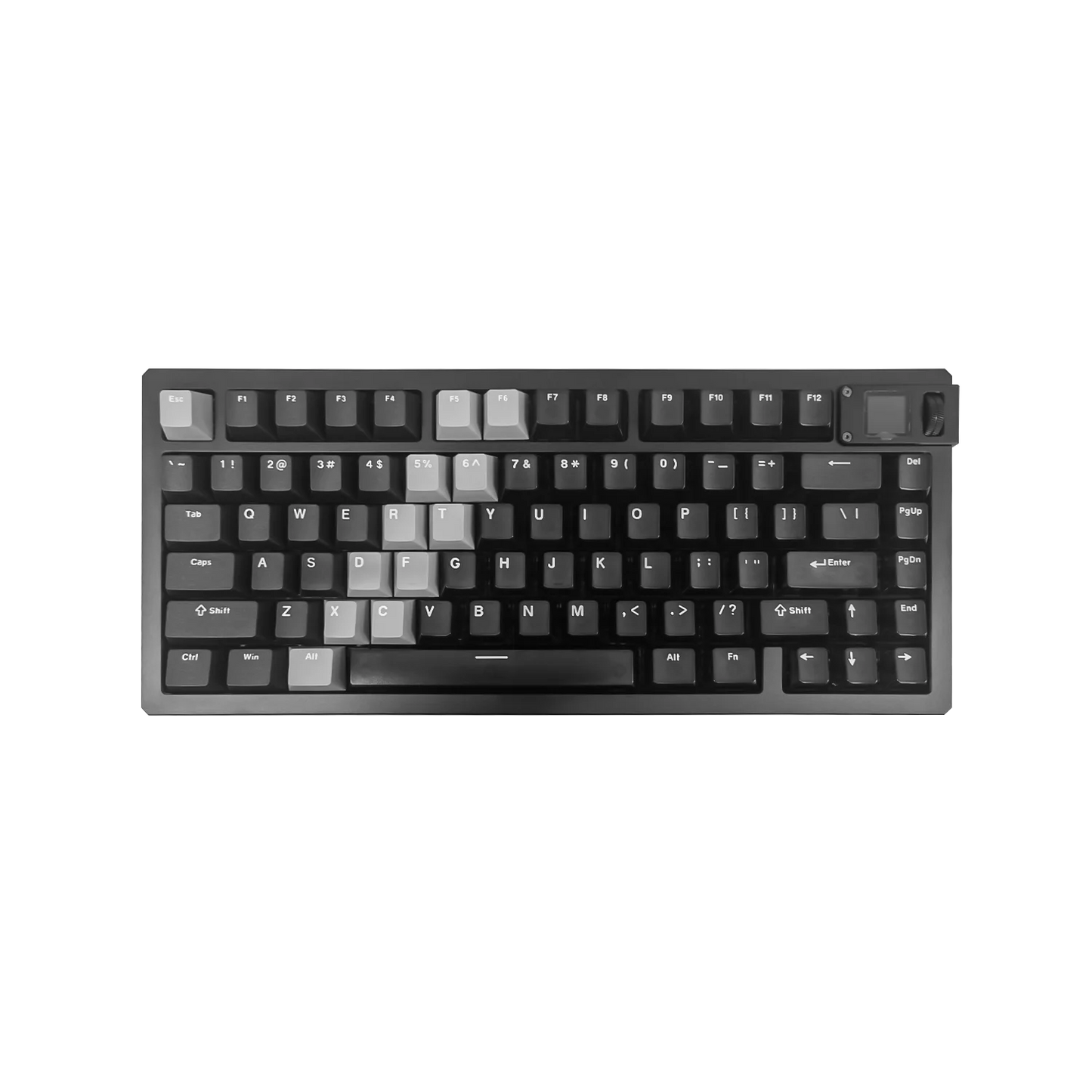

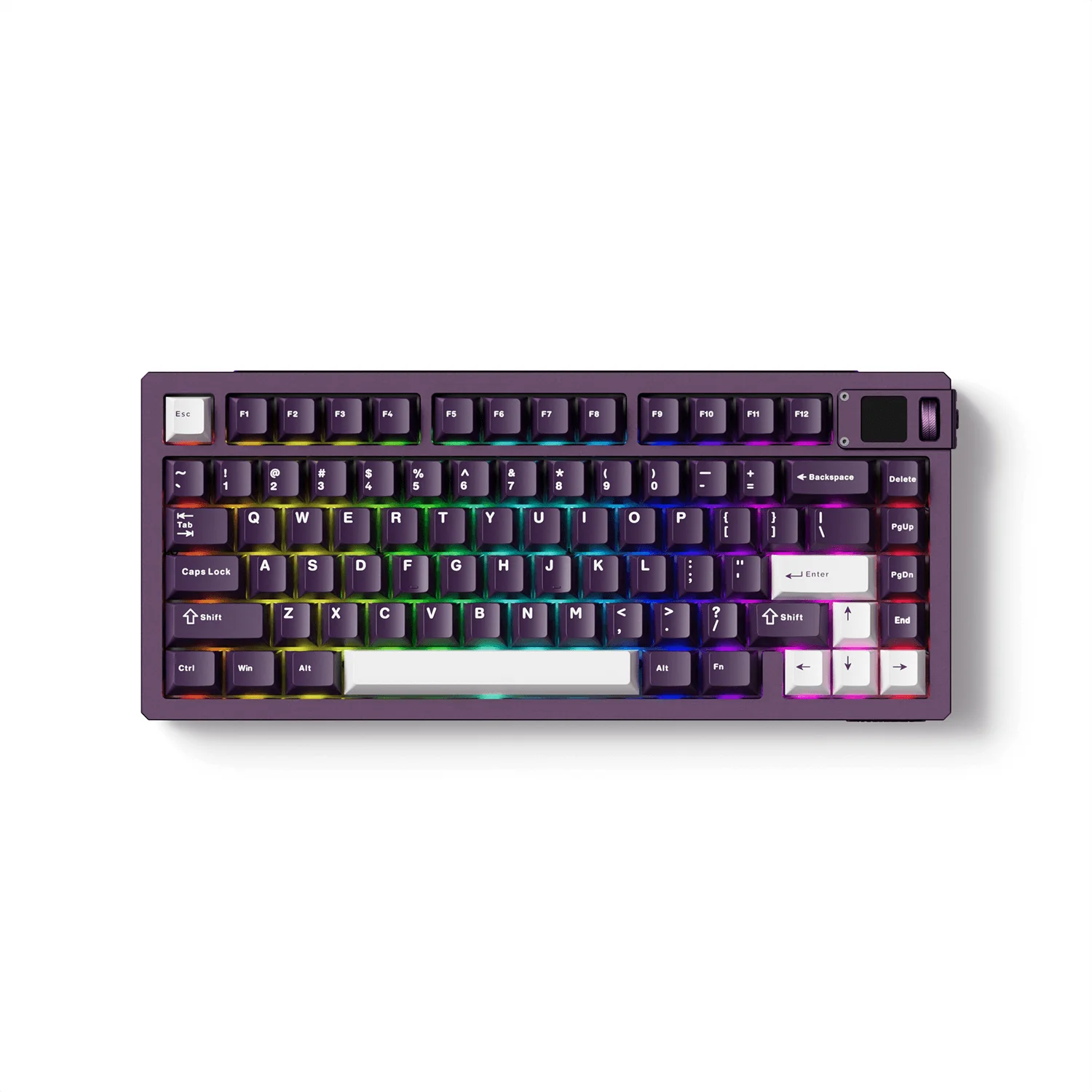

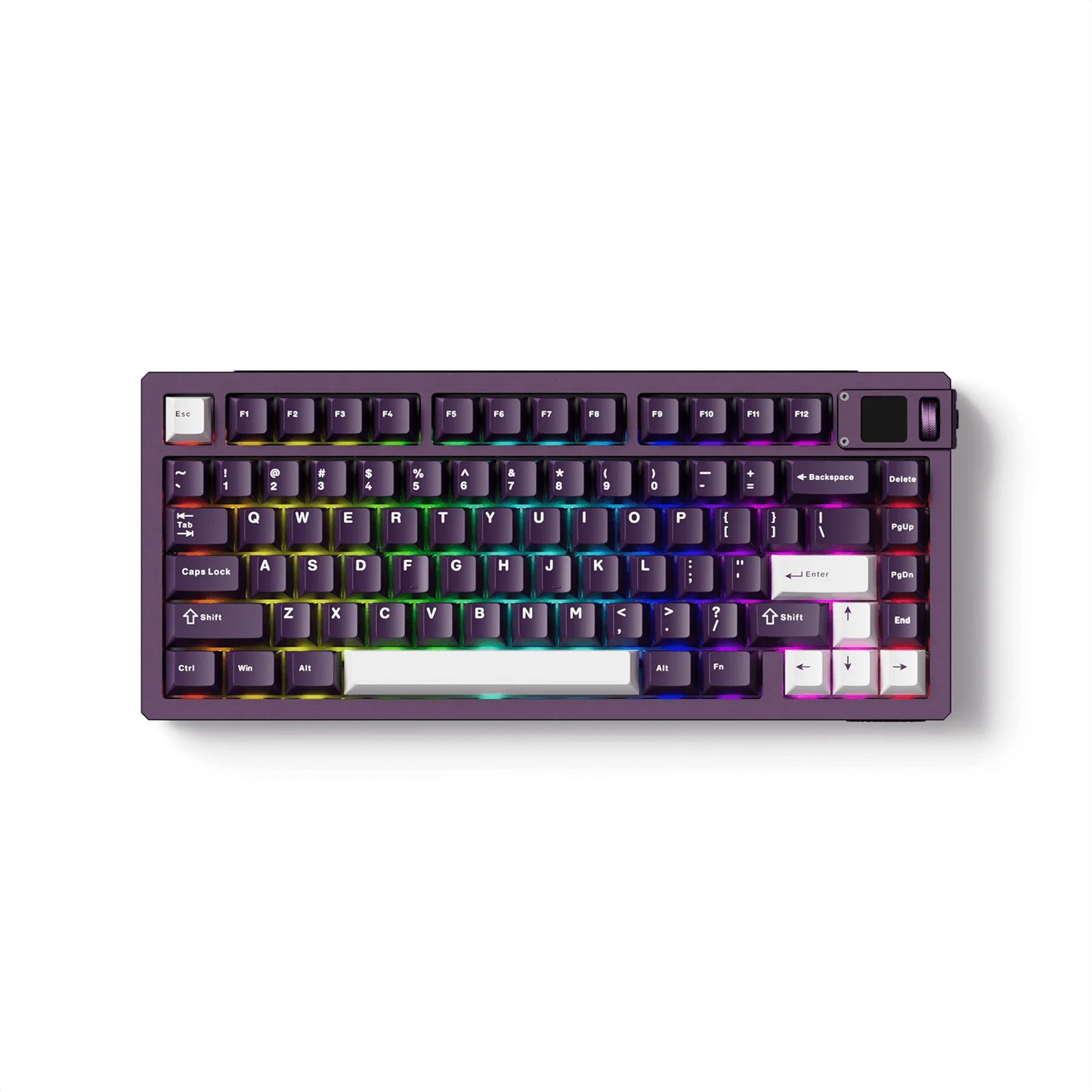

Akko MOD007 V5 HE Magnetic Keyboard with Display Screen 75% Rapid Trigger 0.005mm 8K RGB Gaming Mechanical Keyboard Aluminum CNC

$632.48 USD

~~$632.48 USD~~ $632.48 USD

Sale Sold out

SPECIFICATIONS

AKKO Model: MOD007 V5

Acutation Range: 0.100-3.400mm

Application: Desktop,Laptop,Tablet

Axis Body Brand: Akko

Backlight Type: Multicolor

Battery Included: No

Brand Name: AKKO

Case: Aluminum CNC;

Certification: CE,weee

Full Size keyboard: No

High-concerned chemical: None

Interface Type: USB

Keyboard Standard: 82 Key

Keycup material: PBT plastic

Keycup printing: Doublshot

LED: ARGB(500Hz Refresh Rate)

Language: English

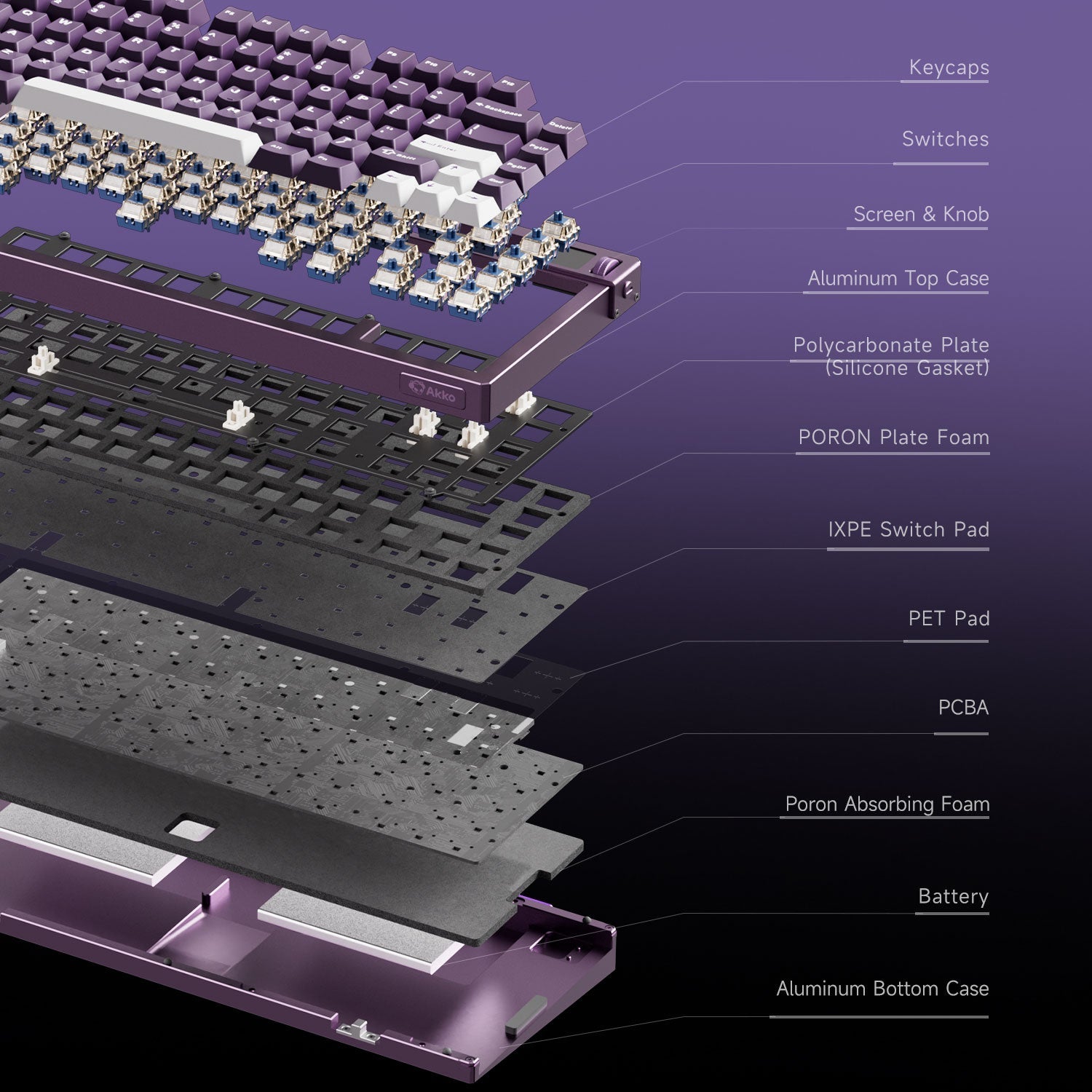

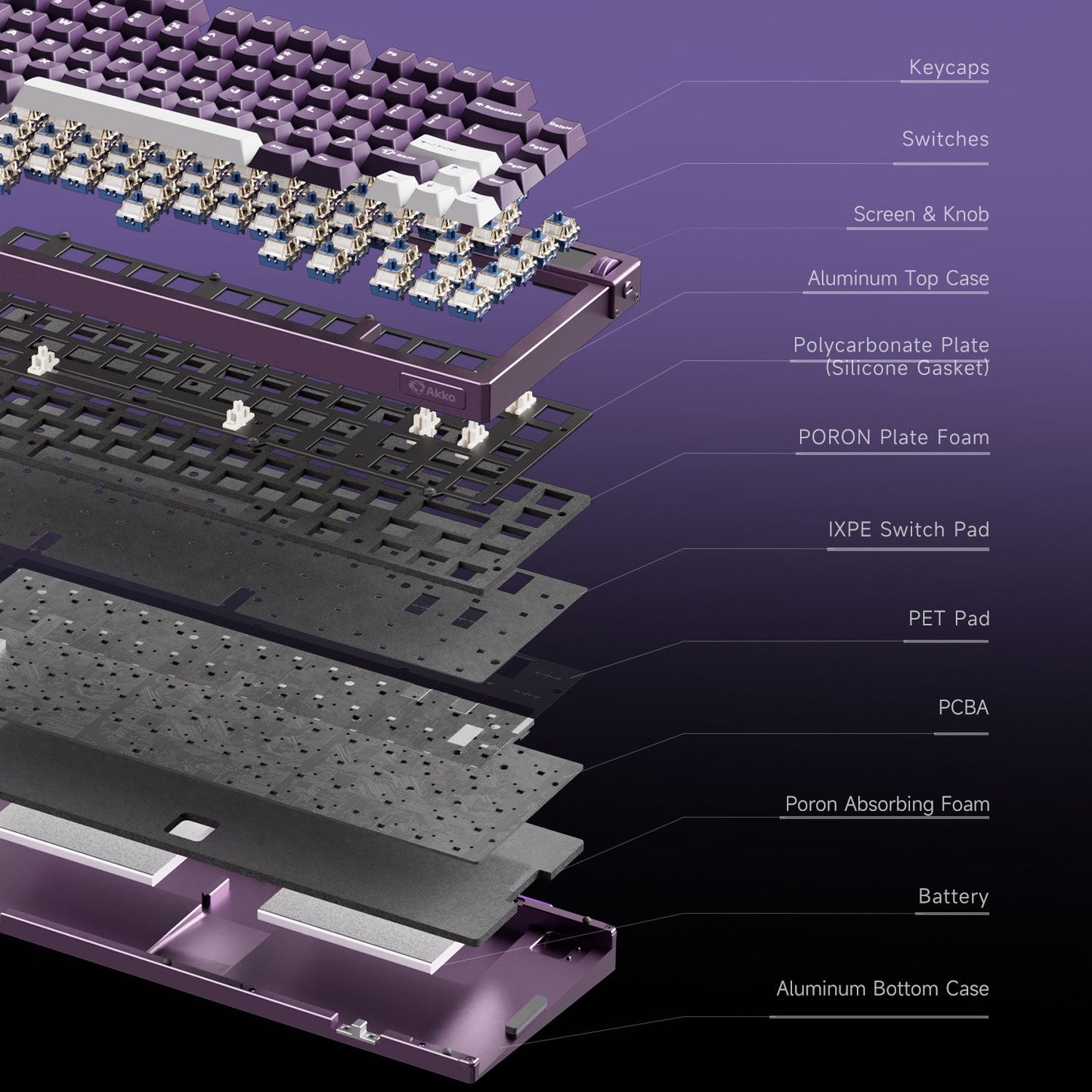

Layer: Poron Plate Foam/ IXPE Switch Pad/ PET Layer/ Case Foam

Layout: US-ANSI

Magnetic Switch Cross-Compatibility: Support

Model: MOD 007B V5 HE

Mount: Gasket Mount

Operation Style: Mechanical

Origin: Mainland China

Package: Yes

Plate: Aluminum Plate/FR4 Plate

Polling Rate: 8,000Hz

RT Accuracy: 0.005-2.500mm

RT Stabilizer: Support

Scanning Rate: 32,000Hz

Software: Web & Cloud Driver

Stabilizer: Pre-Lubed Demagnetized Plate-Mounted Stabilizer

Style: Standard

Switches Hot swap: No

Type: Wired

Wrist Support: No

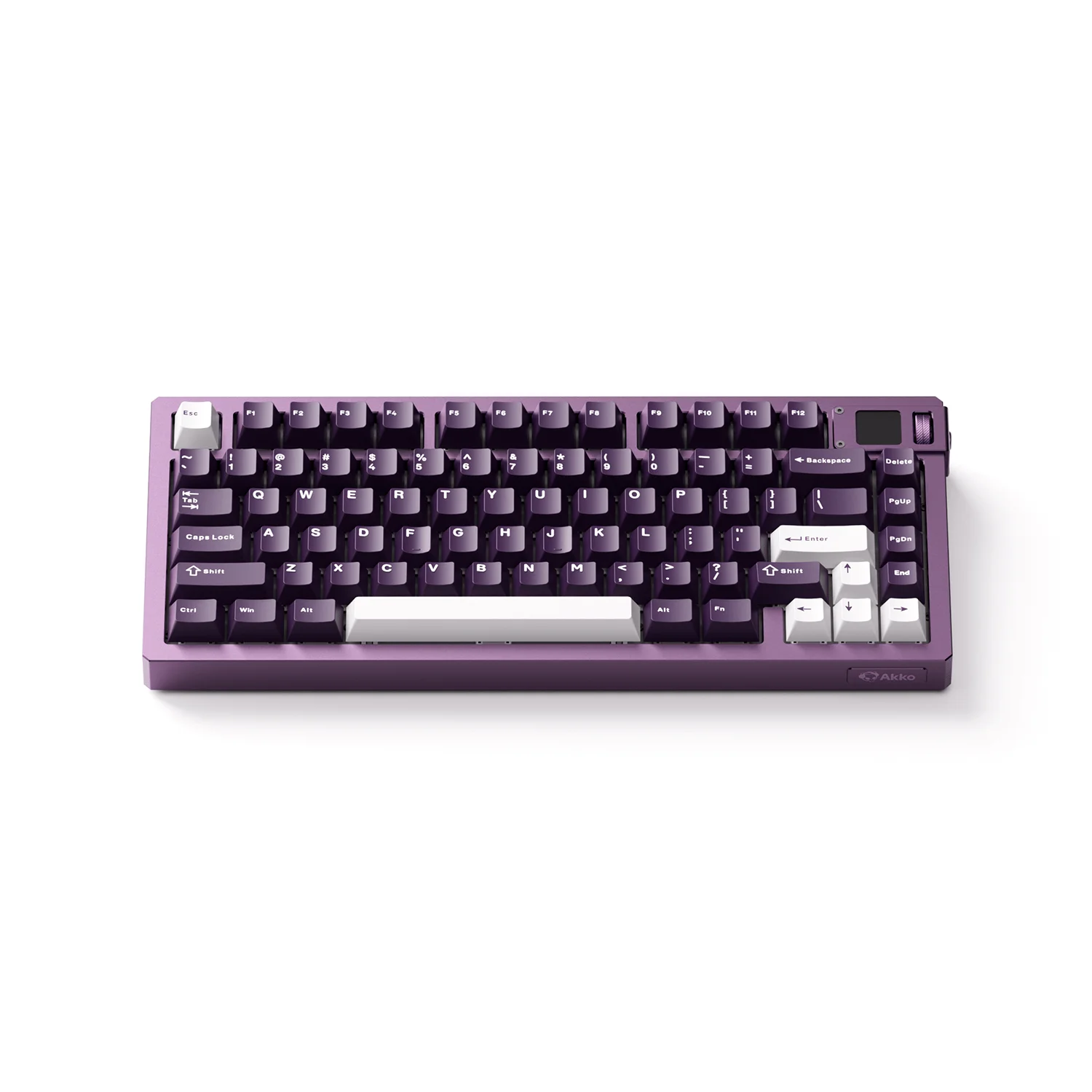

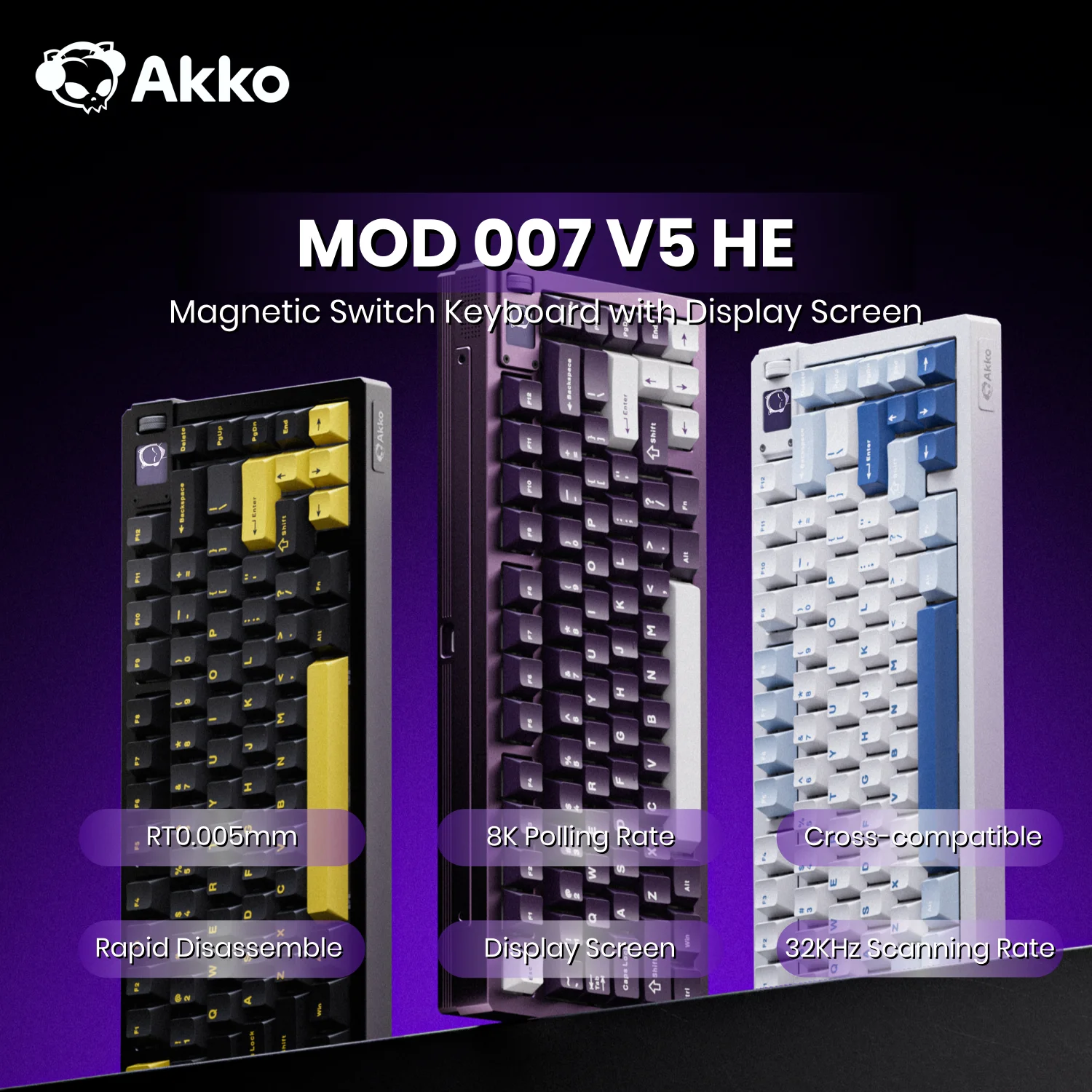

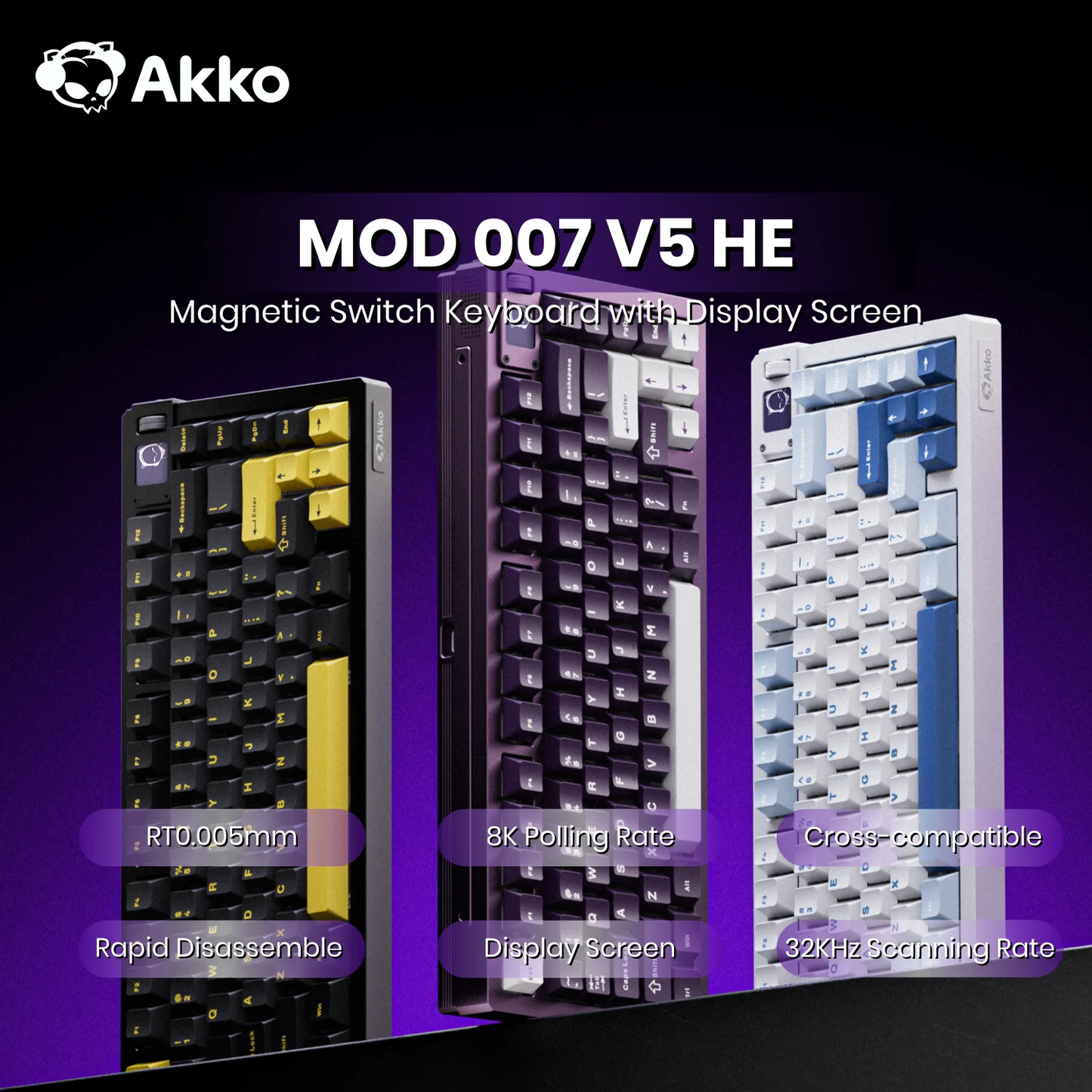

MOD 007 V5 HE Magnetic Keyboard

Features

✔️ Full Range 0.005mm RT

✔️ Cross-compatible

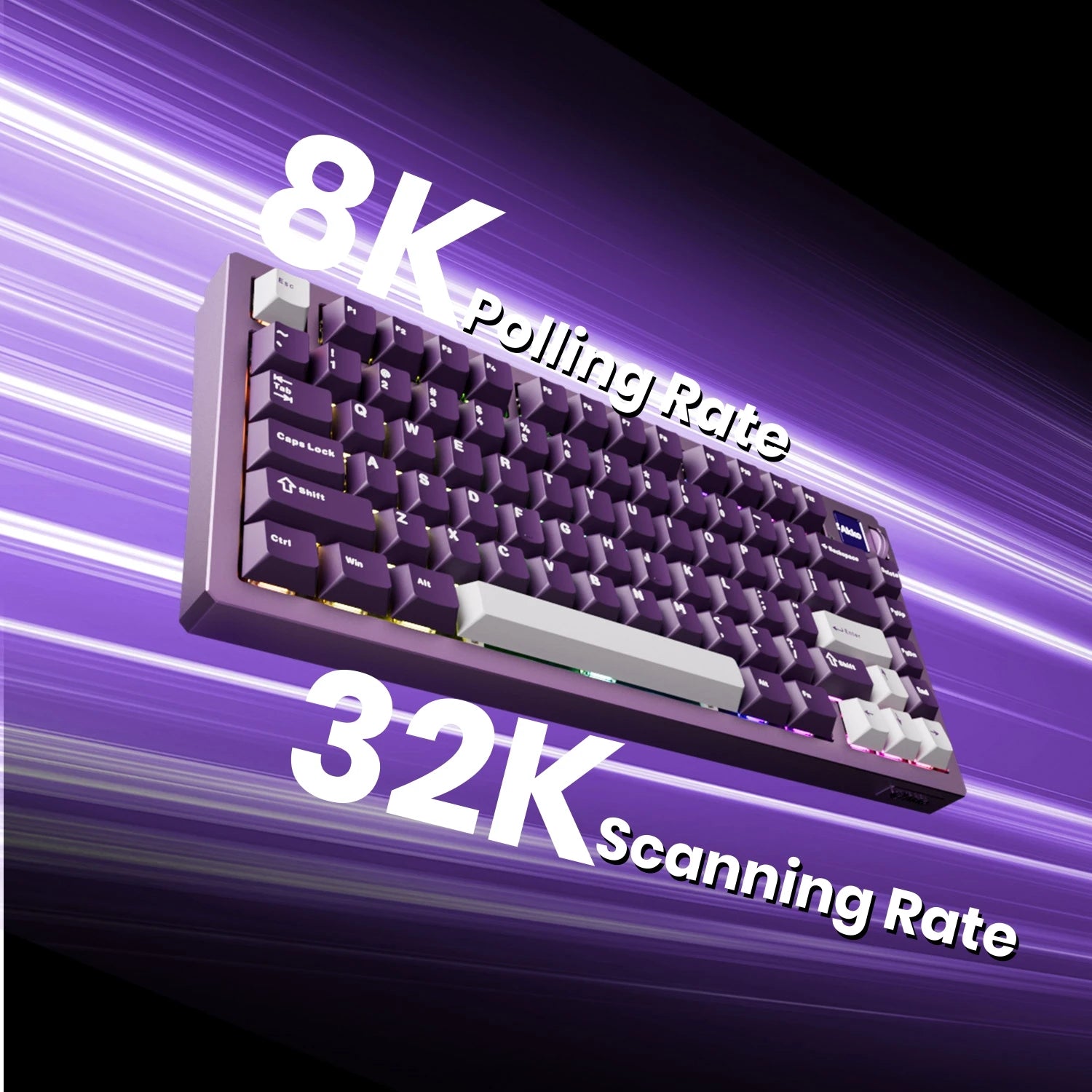

✔️ 8,000Hz Polling Rate

✔️ 32,000Hz Scanning Rate

✔️ Display Screen

✔️ Rapid Disassemble

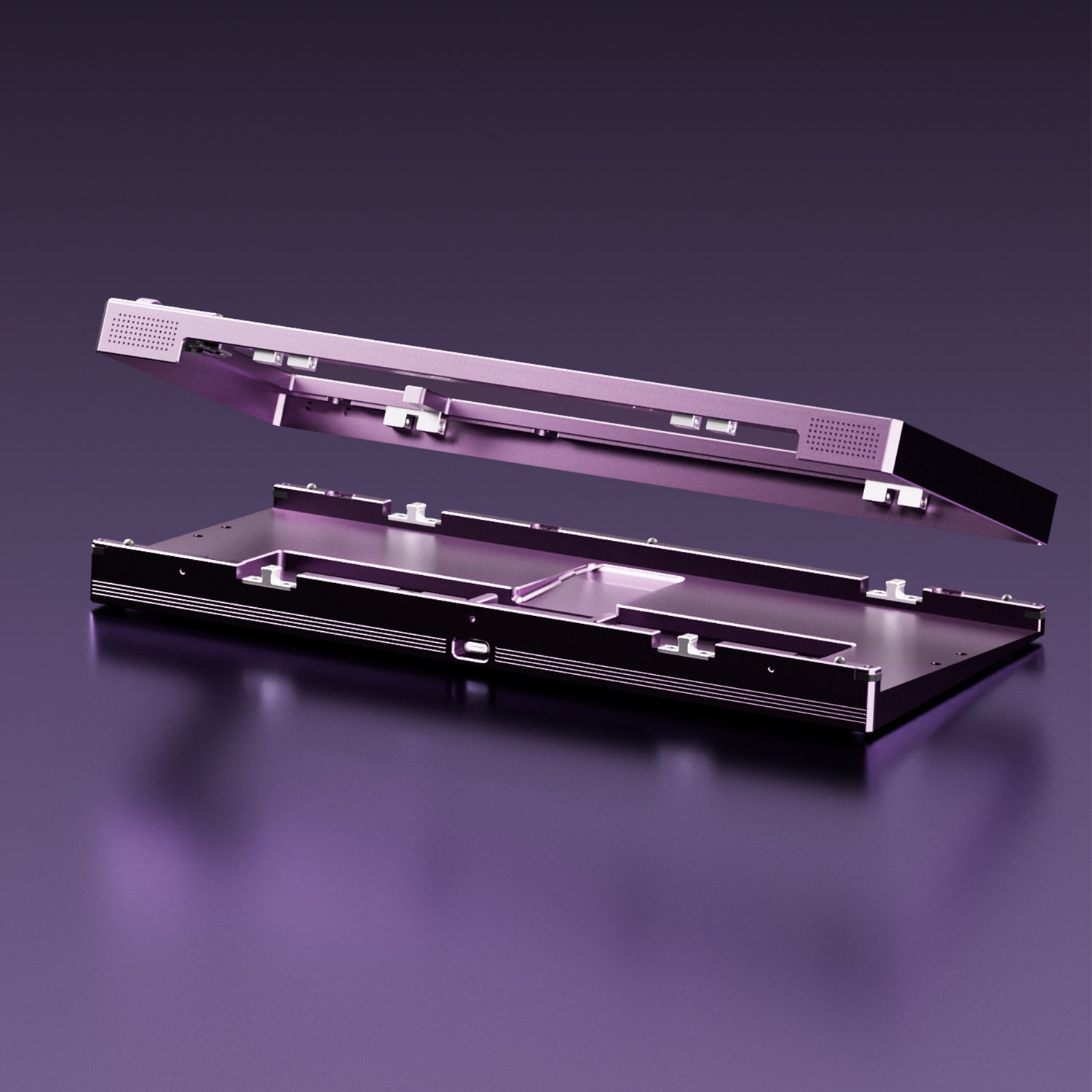

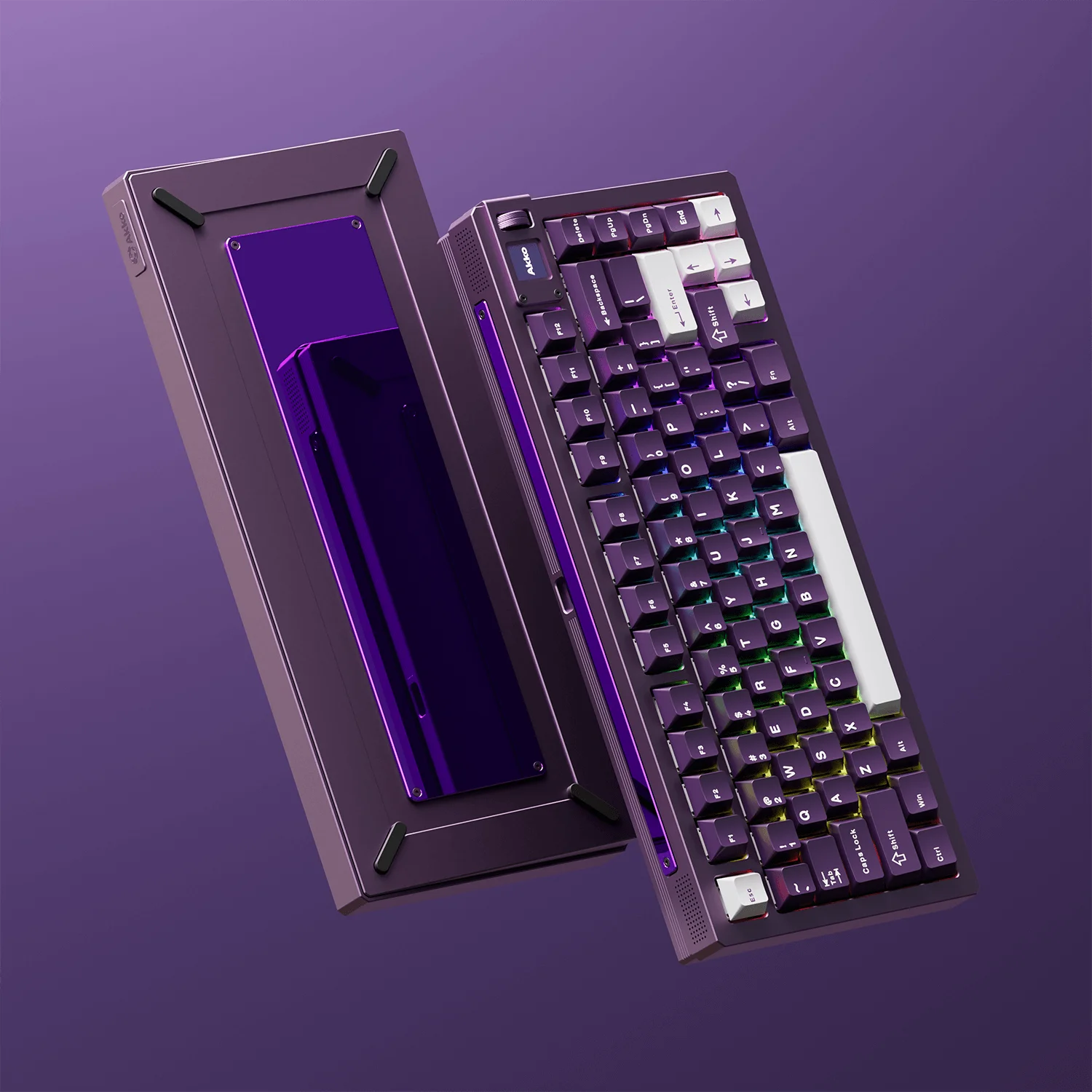

Rapid Disassemble without Screws or Tools

Unlike typical screw-on mechanical keyboards, the MOD 007 V5 HE Magnetic Keyboard features a ball catch to secure the case and adjustable load force that can be modified by tightening screws during installation for enhanced safety and stability.

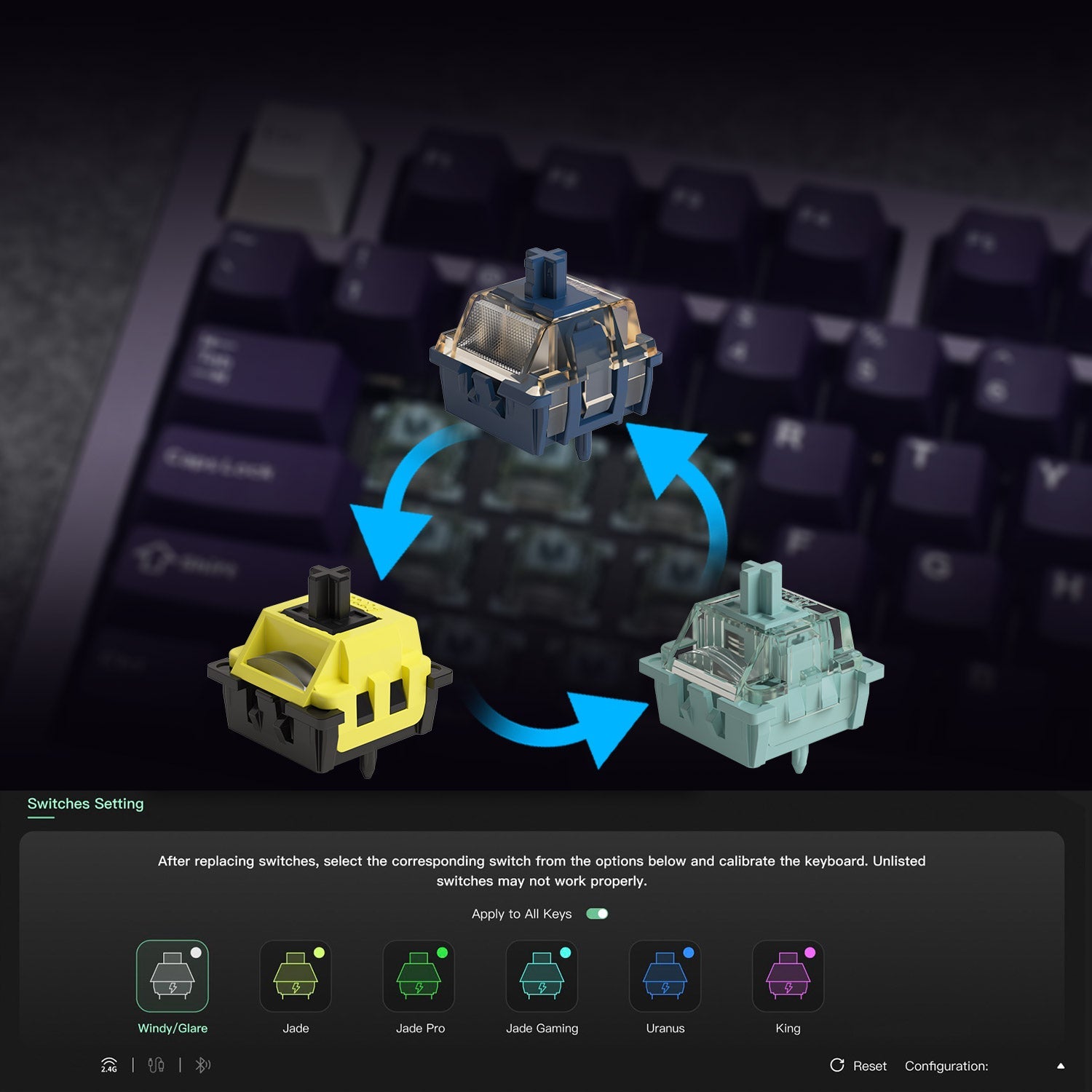

Cross-Compatible with Mainstream Magnetic Switches

MOD 007 V5 HE Magnetic Keyboard provides compatibility with 5 third-party magnetic switches. Users can choose the appropriate switch from the Akko Driver list and calibrate the keyboard easily after replacement. Mixing and matching them in different keys is also possible.

Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy.

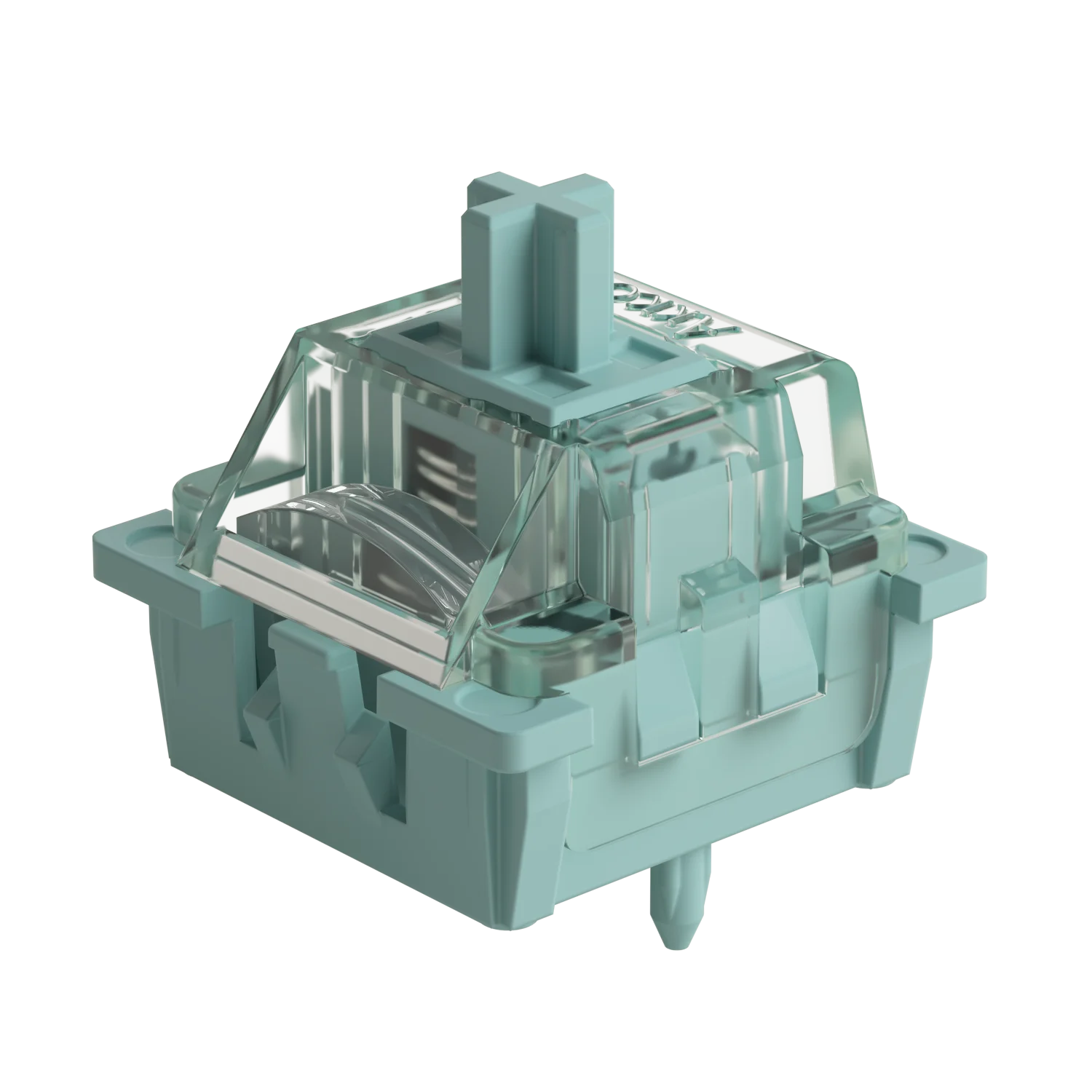

Akko Astrolink Magnetic Switch

Type: Linear

Total Travel: 3.4mm

Initial Force: 36±5gf

End Force: 46gf

Initial Magnetic Flux: 90±15Gs(PCB1.6mm) / 100±15Gs(PCB1.2mm) Bottom-out Magnetic Flux: 480±40Gs(PCB1.6mm) / 640±40Gs(PCB1.2mm)

Top/Stem/Bottom: POM/PC/Nylon

LED Diffuser

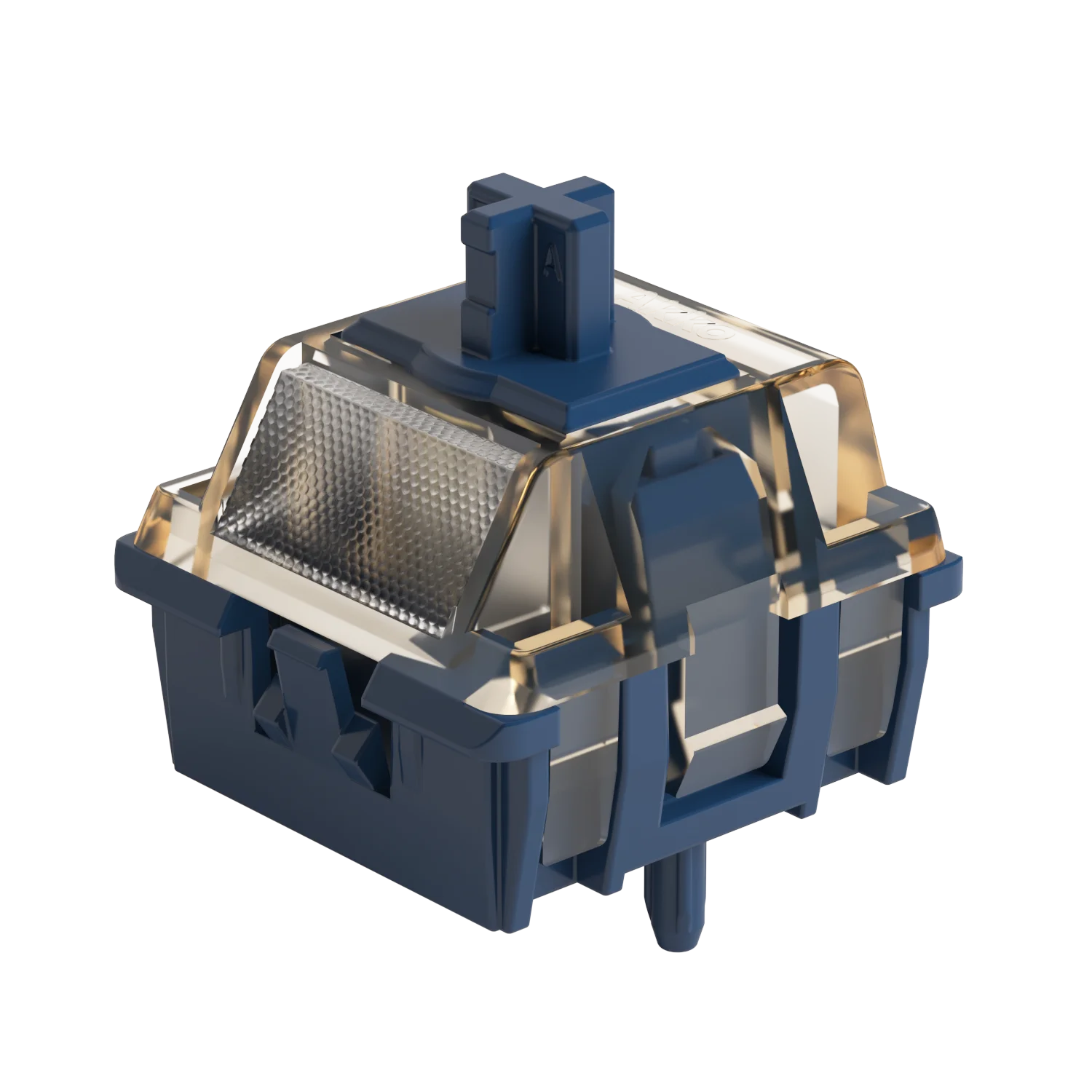

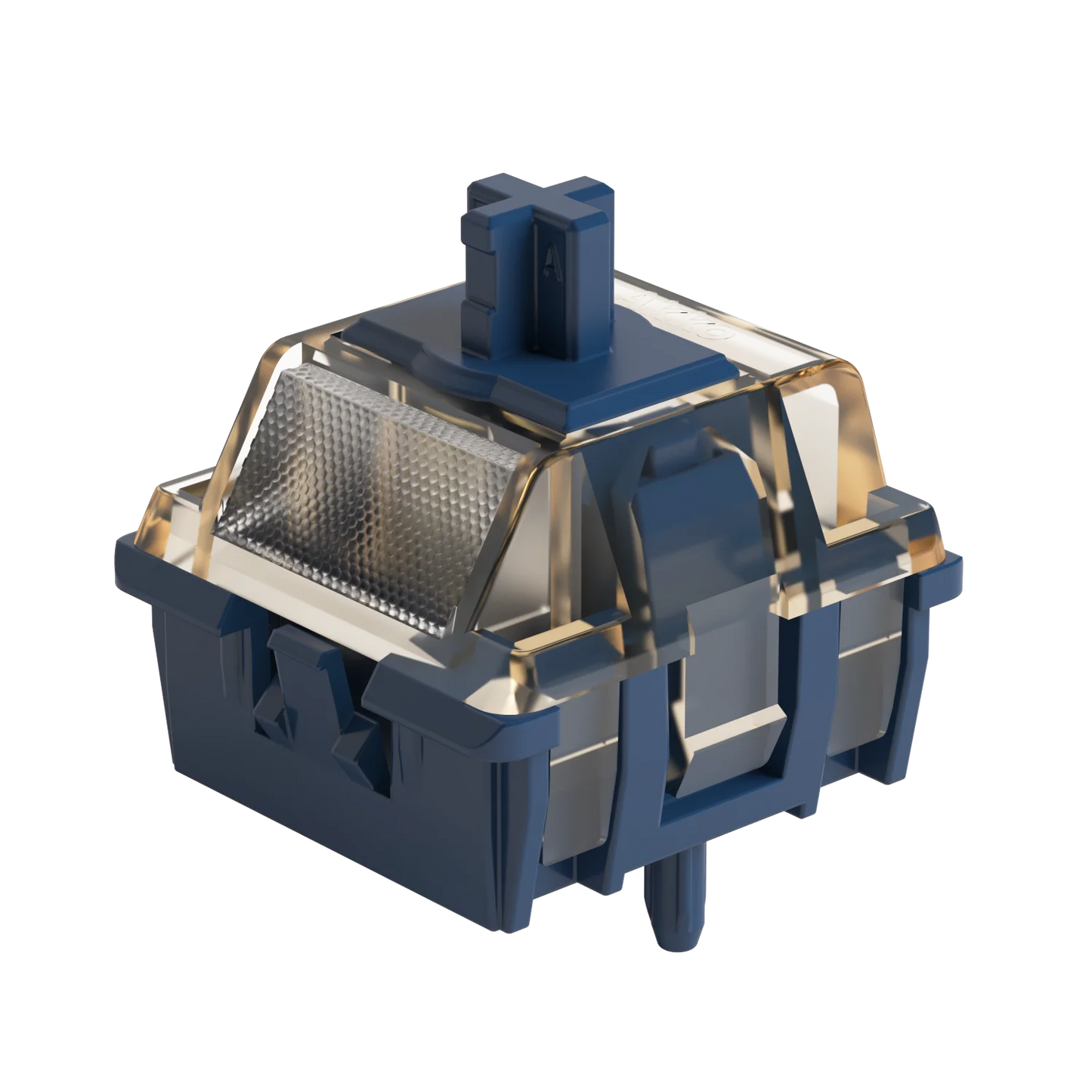

Akko AstroAim Magnetic Switch

Type: Linear

Total Travel: 3.5±0.1mm

Initial Force: 35gf

End Force: 55gf

Initial Magnetic Flux:

95±15Gs(PCB1.6mm) / 110±15Gs(PCB1.2mm)

Bottom-out Magnetic Flux:

580±40Gs(PCB1.6mm) / 720±50Gs(PCB1.2mm)

Top/Stem/Bottom: PC/POM/PA66

LED Diffuse

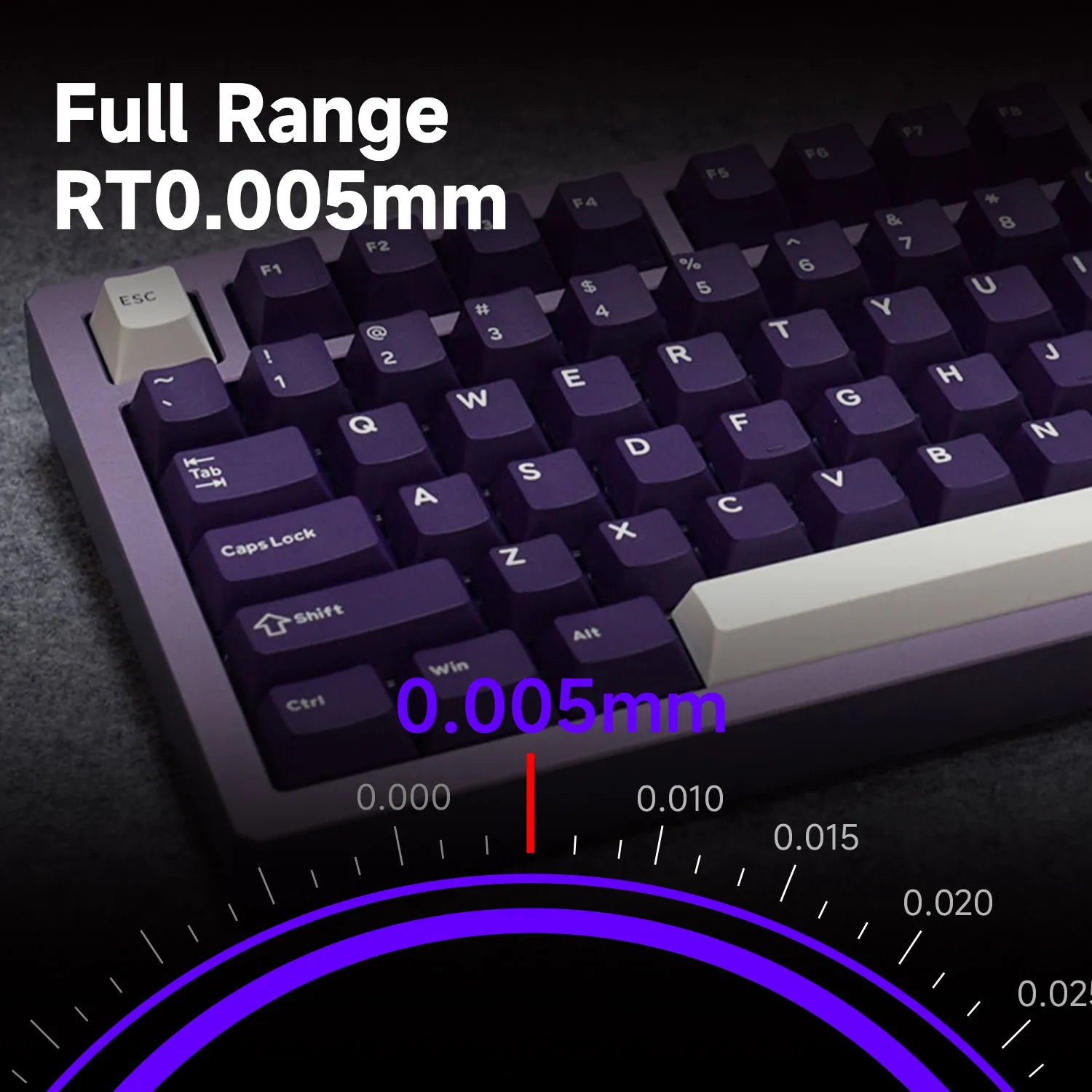

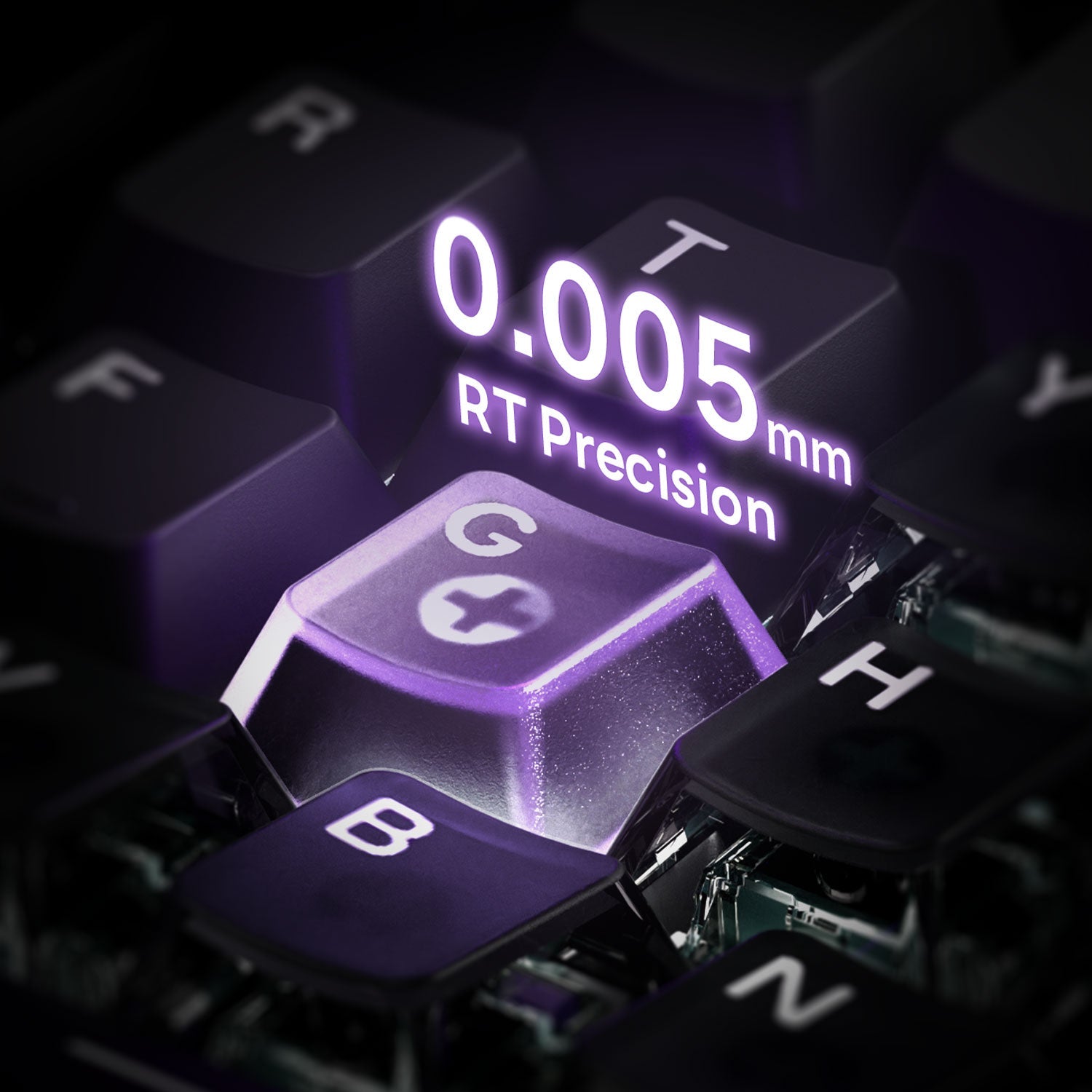

Full Range RT0.005mm

MOD 007 V5 HE Magnetic Keyboard attain ultra-precise 0.005mm Rapid Trigger and adjustable actuation distance in 0.005mm steps. Users can adjust their typing or gaming experience for faster response times and improved accuracy, perfect for competitive gaming.

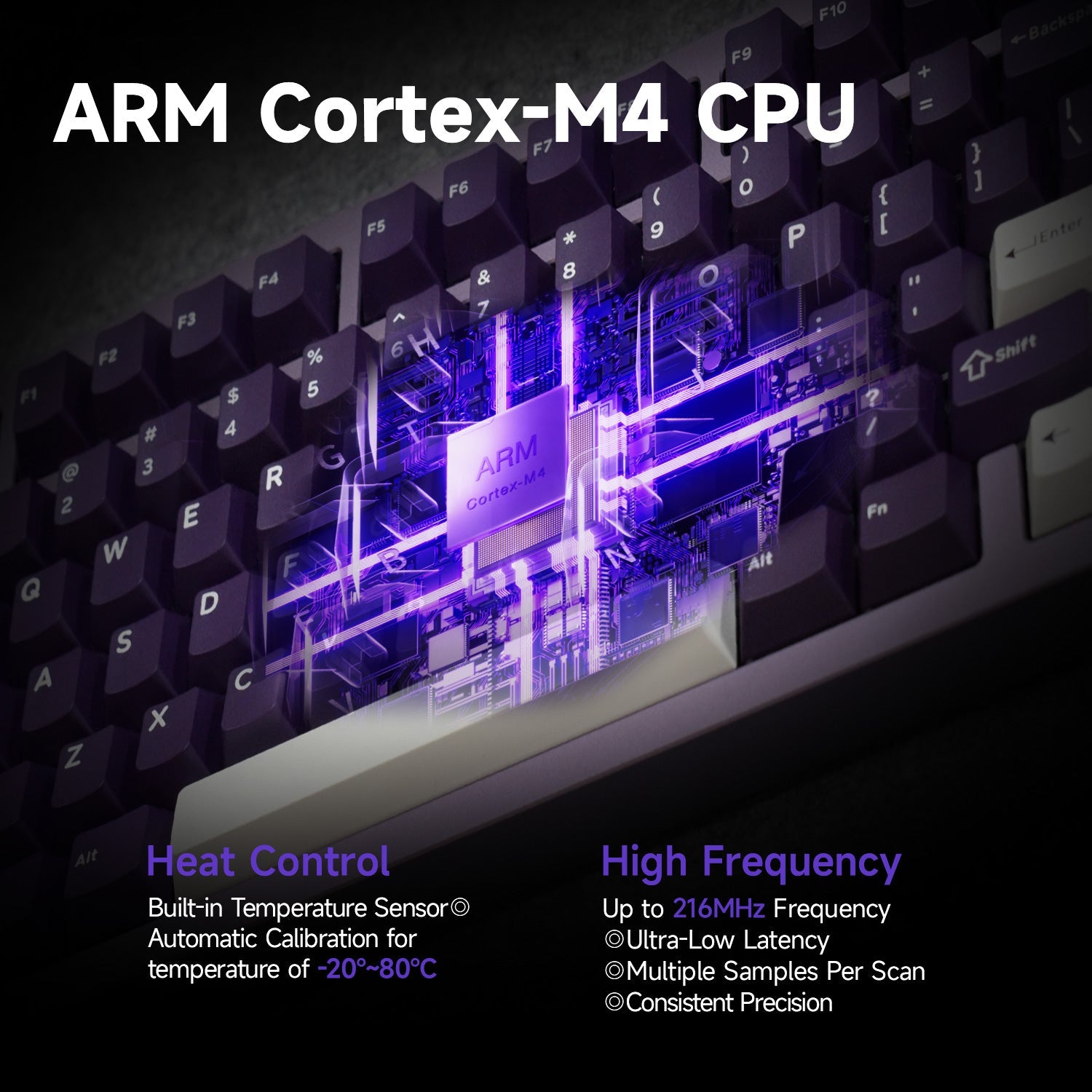

ARM Cortex-M4 CPU

The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance.

Universal 8K Polling Rate

8000Hz polling rate for all keys, enjoy ultra-fast response times and smoother, more precise inputs - perfect for gaming and high-performance tasks.

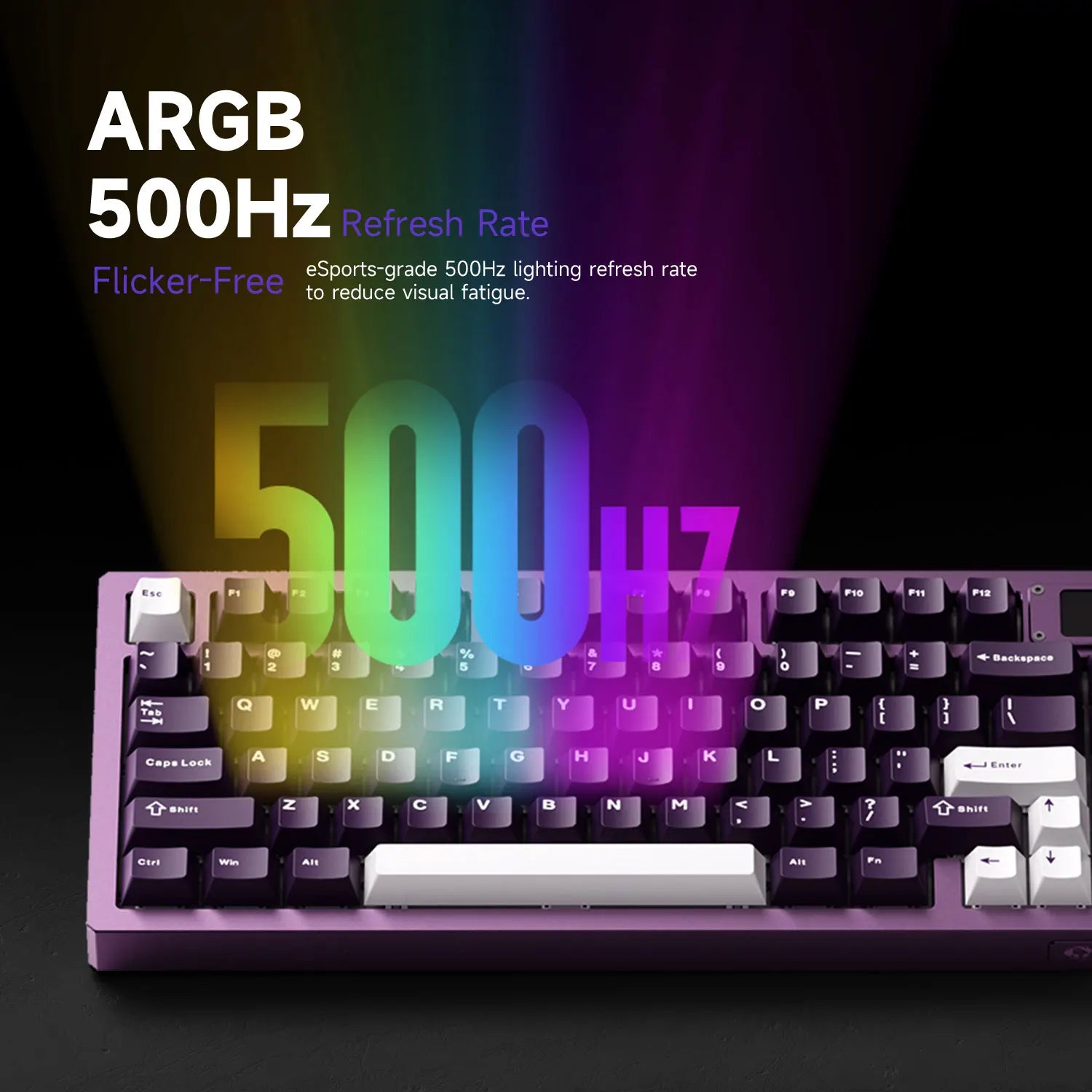

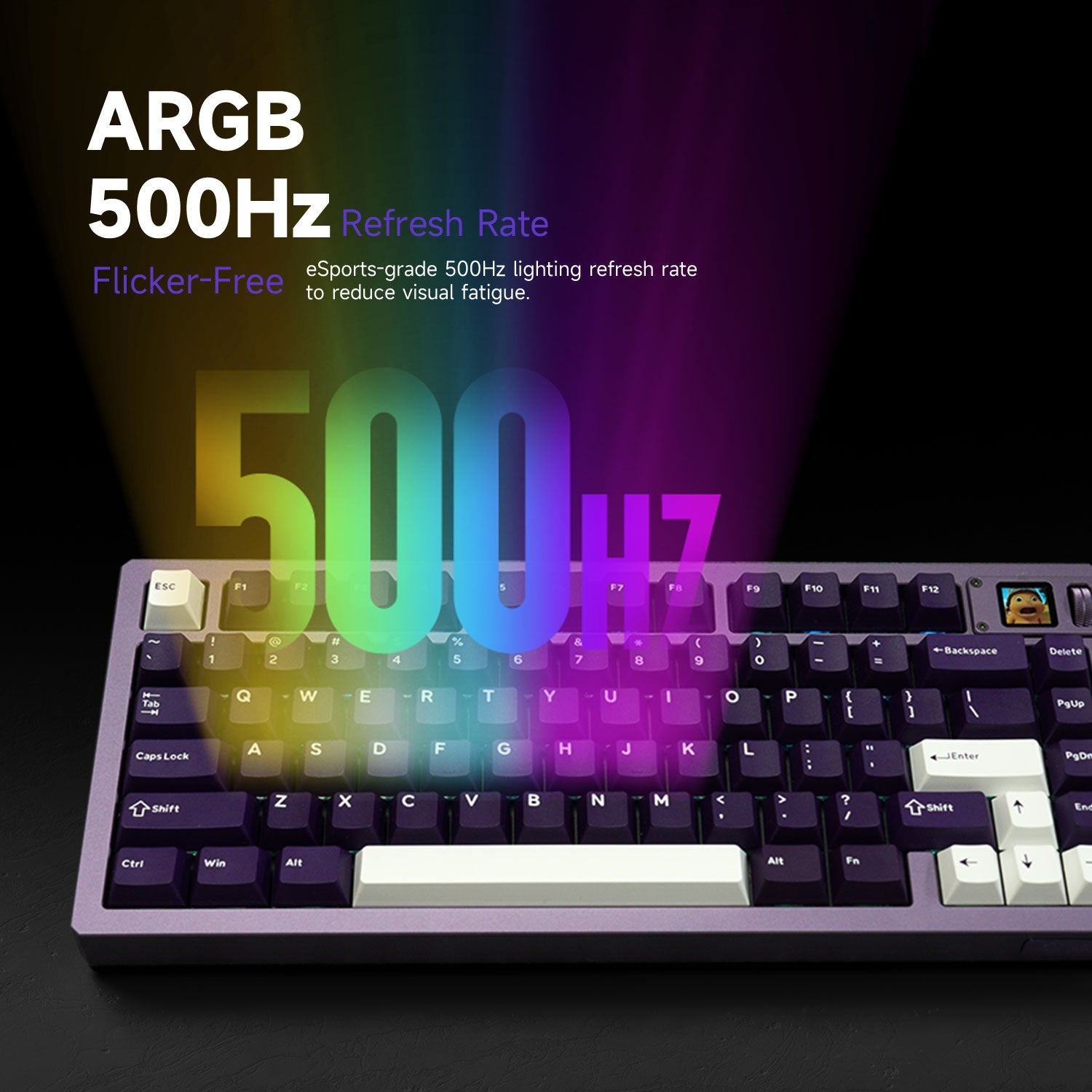

ARGB at a 500Hz Refresh Rate

MOD 007 V5 HE Magnetic Keyboard features ARGB(addressable RGB) with individually controlled LEDs for smooth, flicker-free lighting. With Alpha channel integration and a 500Hz refresh rate, it offers richer dynamic effects and reduces visual fatigue—perfect for gaming and aesthetic builds.

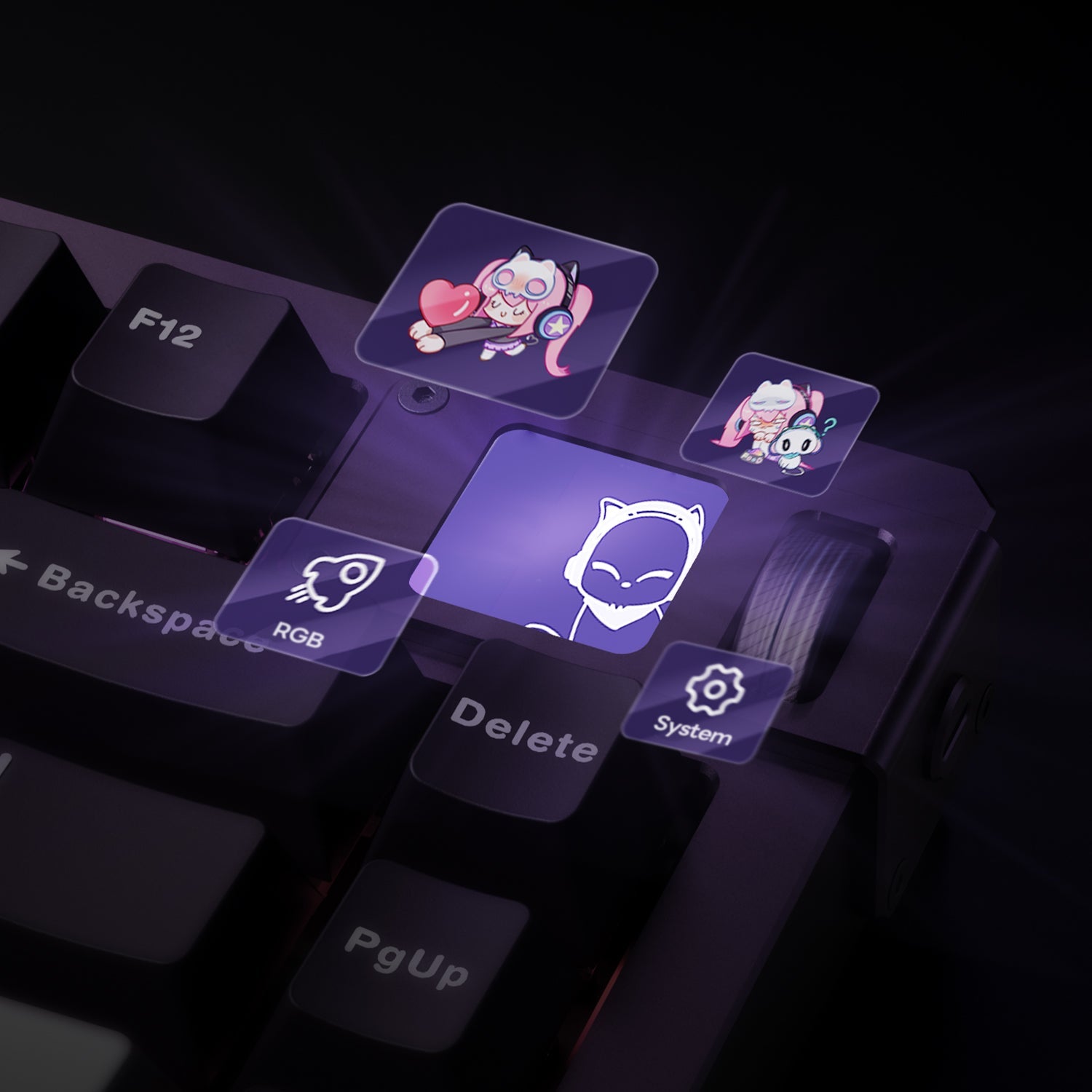

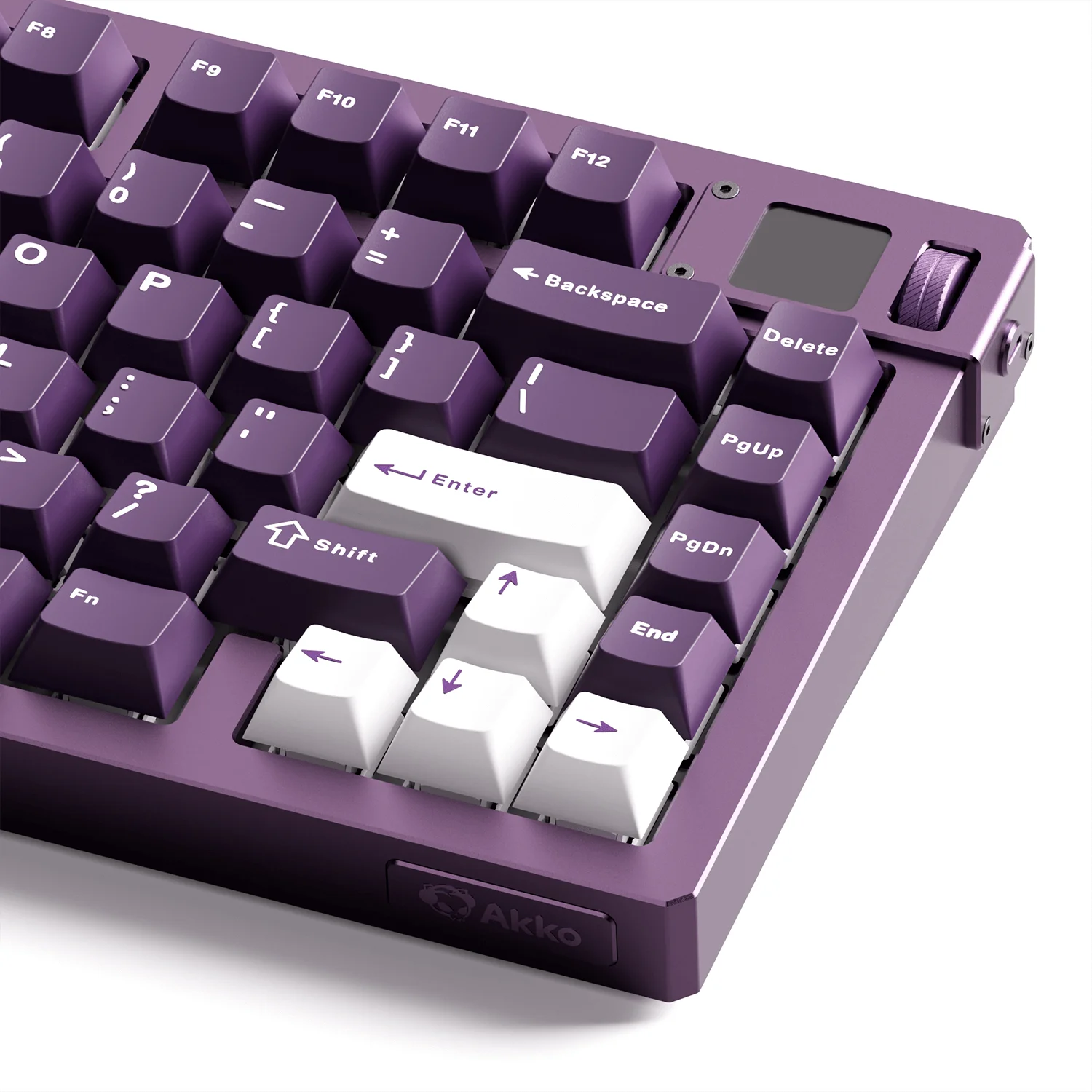

Programmable Display Screen & Vertical Knob

Display screen, featuring multimedia functions and user-uploaded GIF support (controlled by Akko Cloud Driver).

Easily control the volume and lighting and program to other functions.

RT Stabilizer

This “RT Stabilizer” mode is especially useful when set to a Rapid Trigger precision of 0.005mm, as magnetic switch keyboards may experience unintended inputs or disconnection from slight hand tremors, which can disrupt the overall gaming experience.

It can be activated via the Akko Driver with 4 different filtering levels.

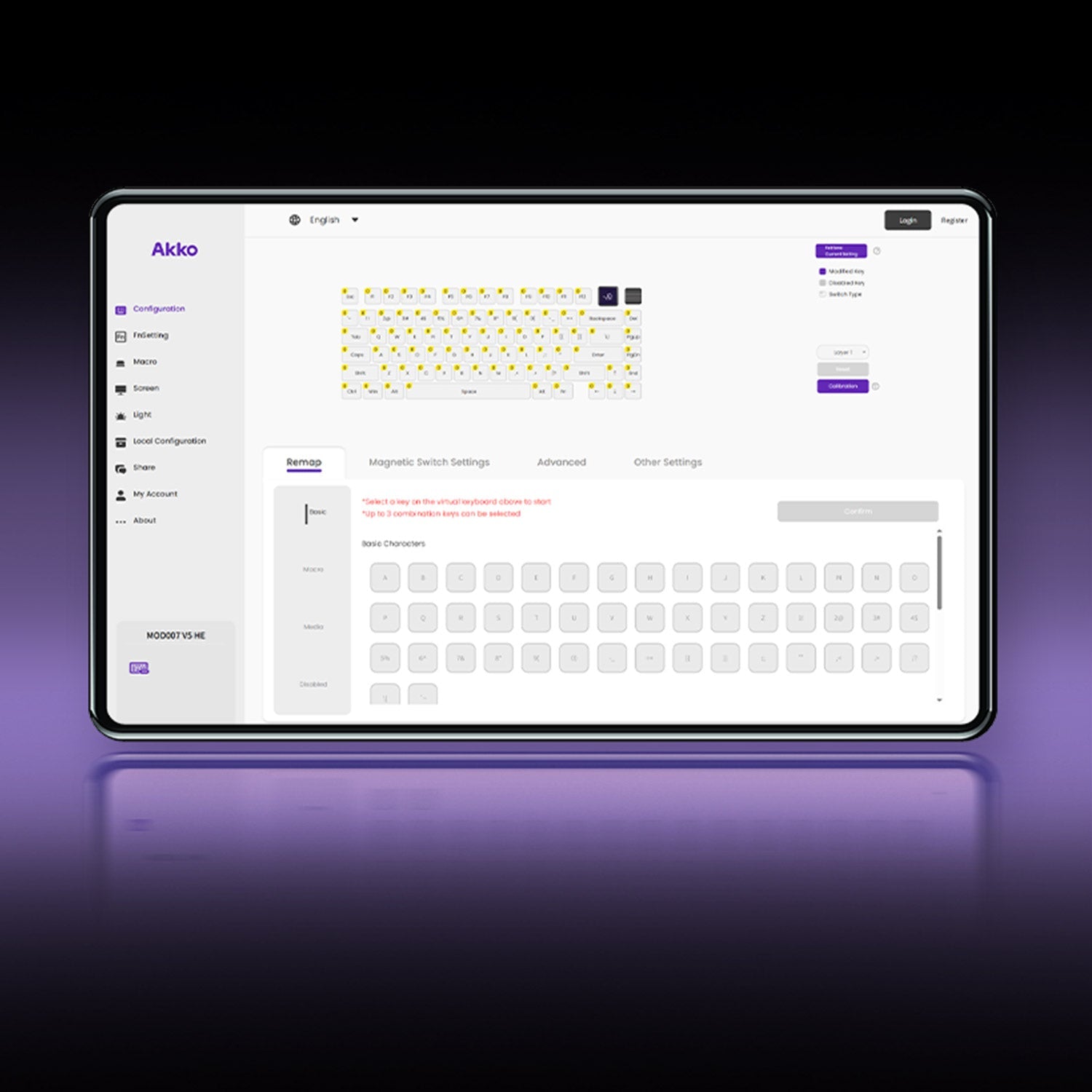

Web & Cloud Driver

Full Customization for Lighting, Keys, and Macros.

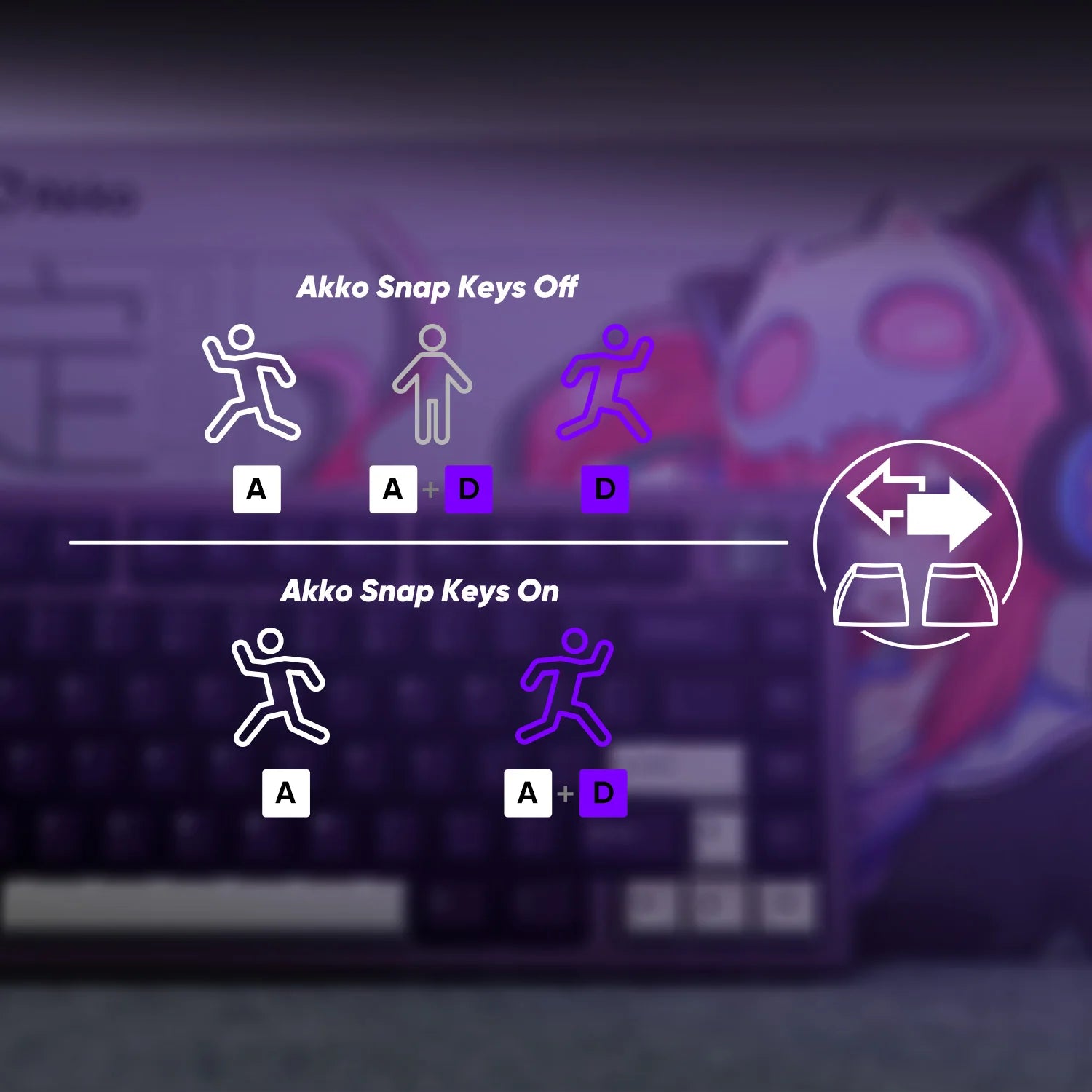

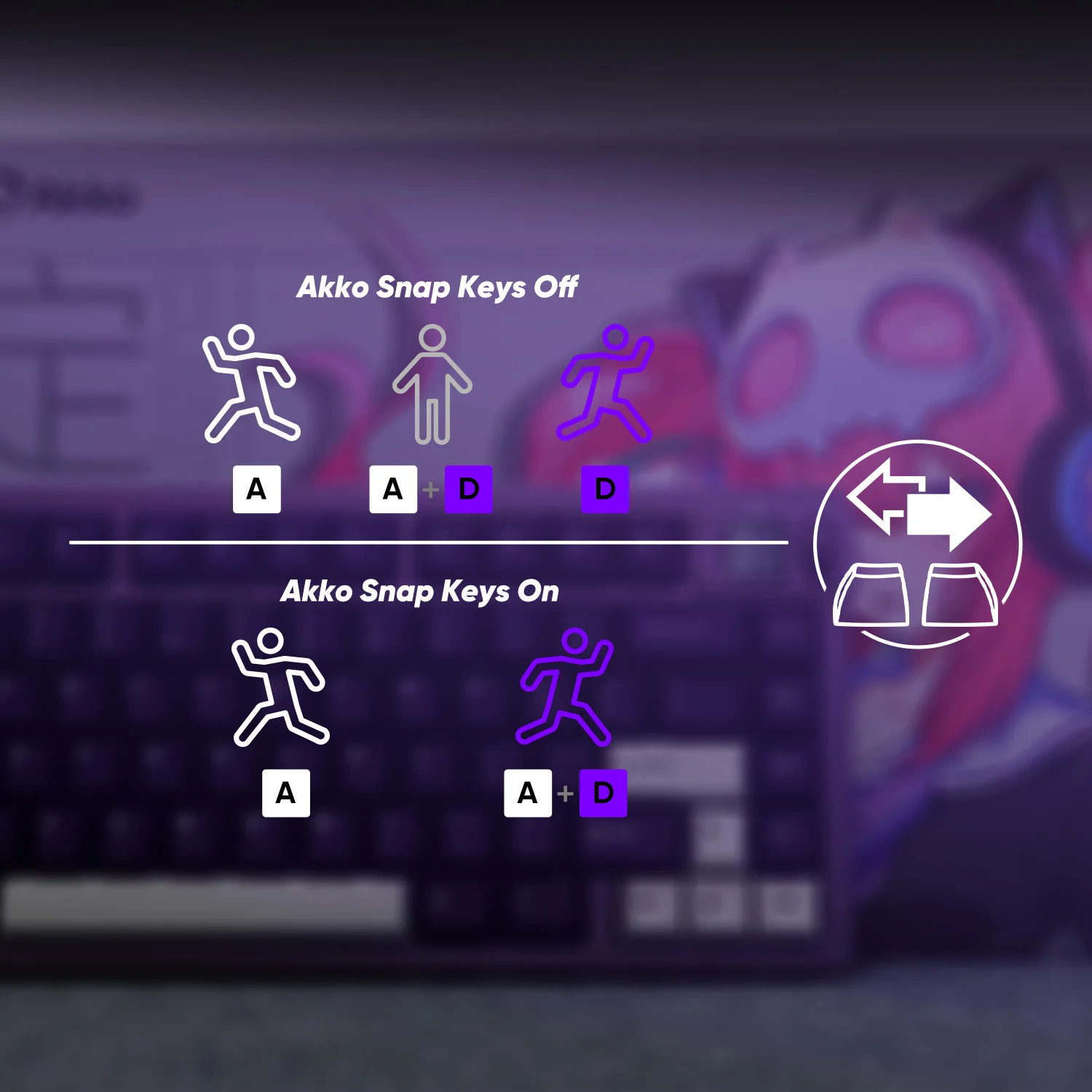

Snap Key

Snap Key, Akko’s SOCD implementation, prioritizes the latest input for faster directional shifts, ensuring smooth, responsive control in FPS games.

Adjustable Actuation Distance

These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing.

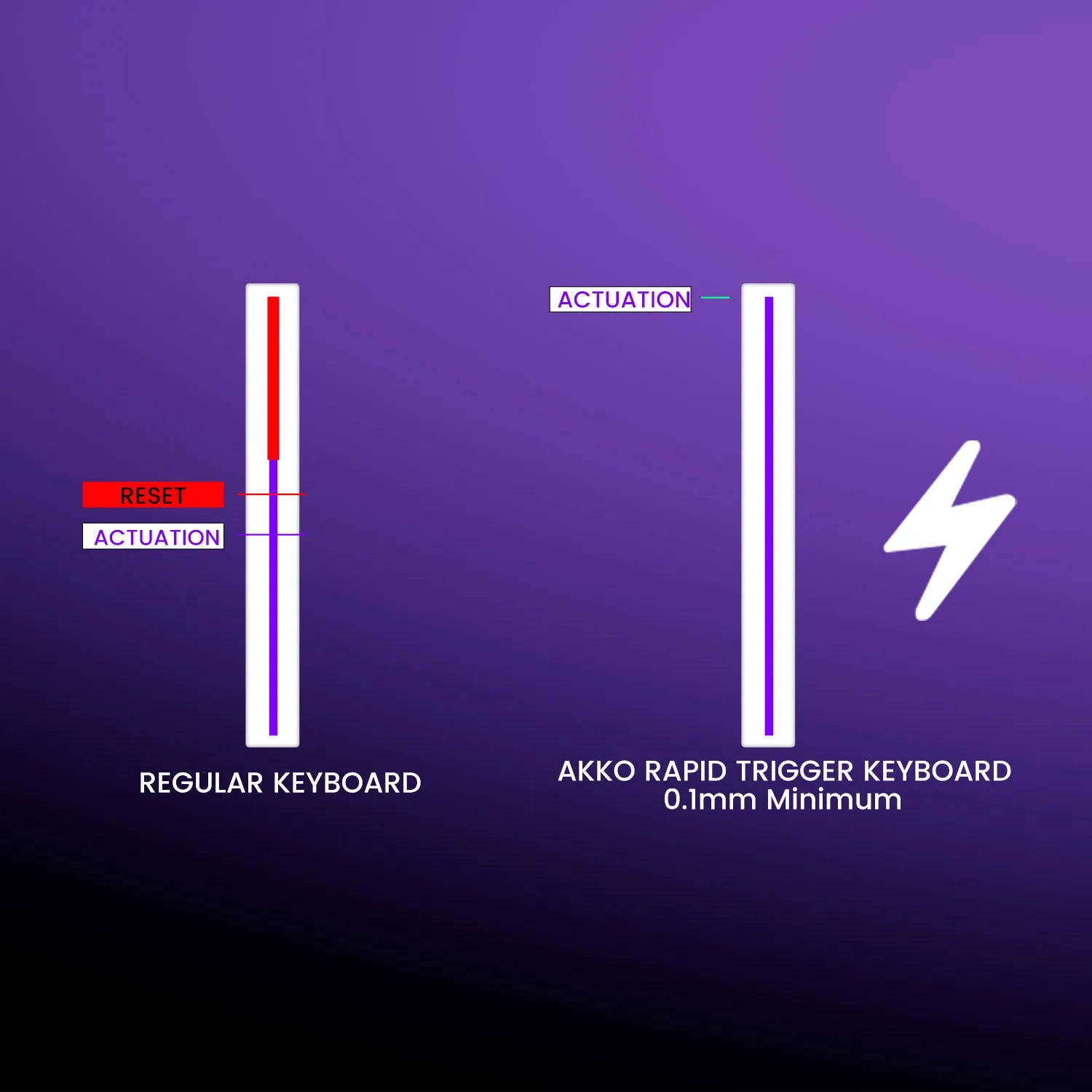

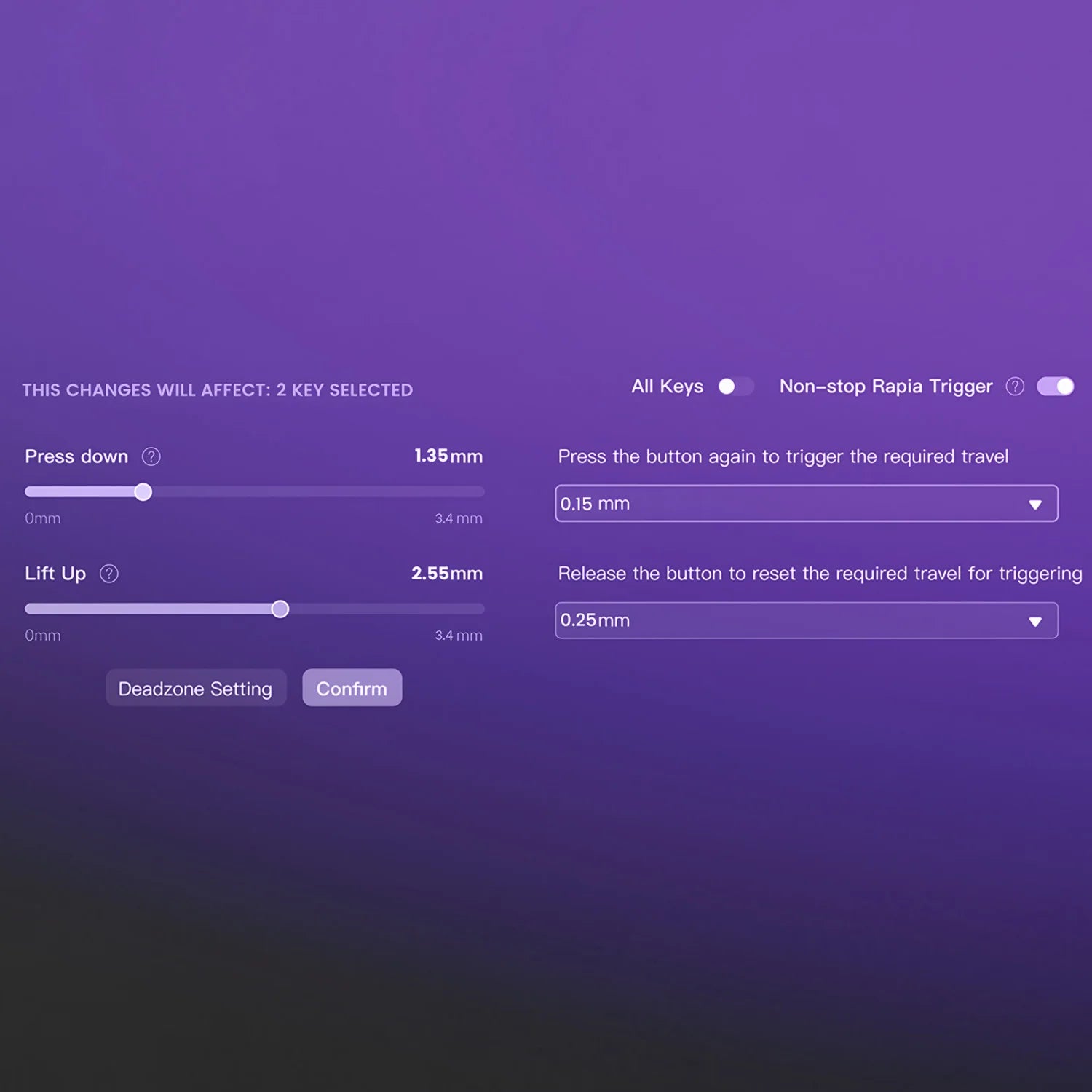

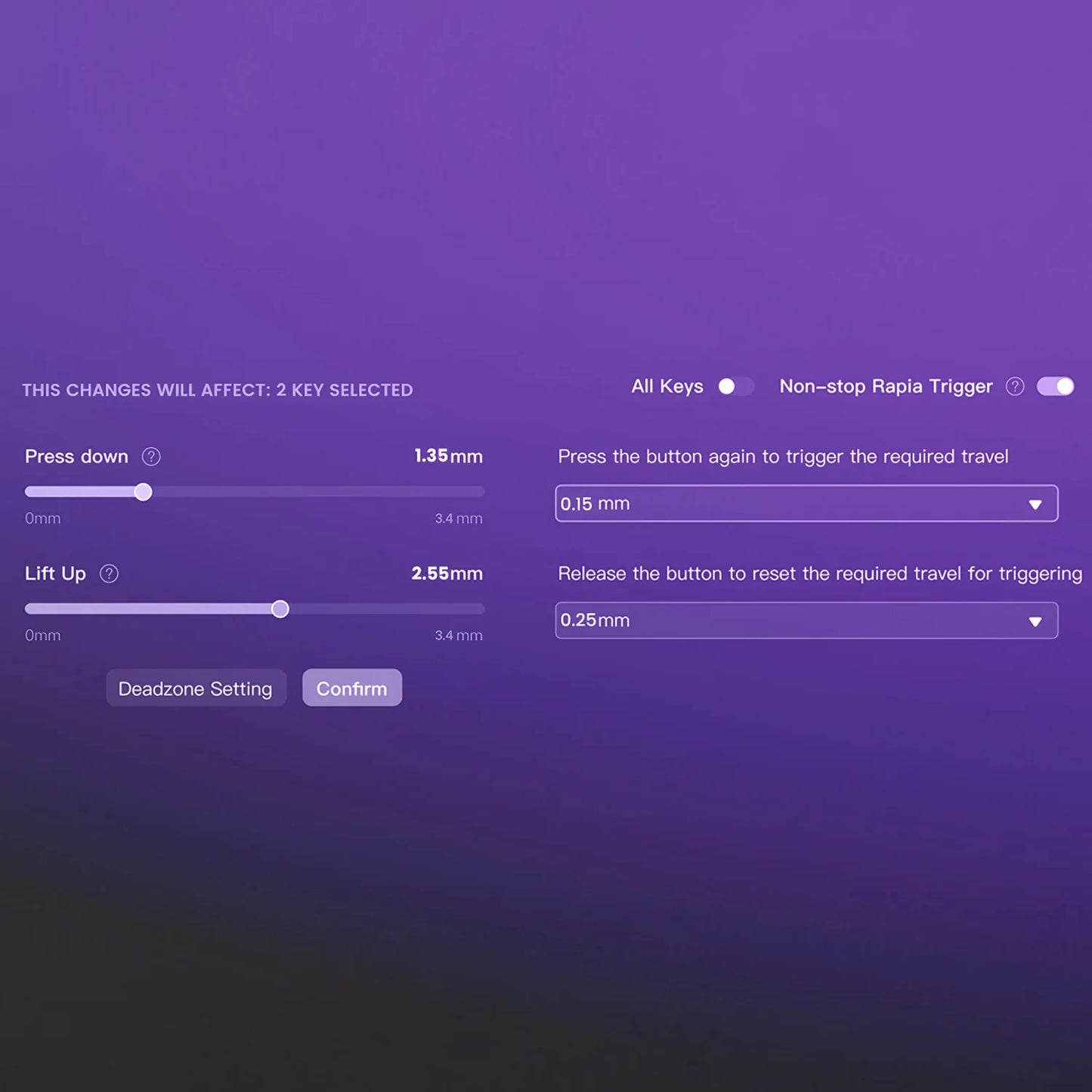

Rapid Trigger (RT)

Rapid Trigger eliminates actuation delay by instantly activating and deactivating keys with minimal travel—perfect for FPS gaming.
